Fixation : Cementless
Material : Ti6Al4V (ISO 5832-3) with HA Coating as per US FDA norms
Taper : 12/14 Cone

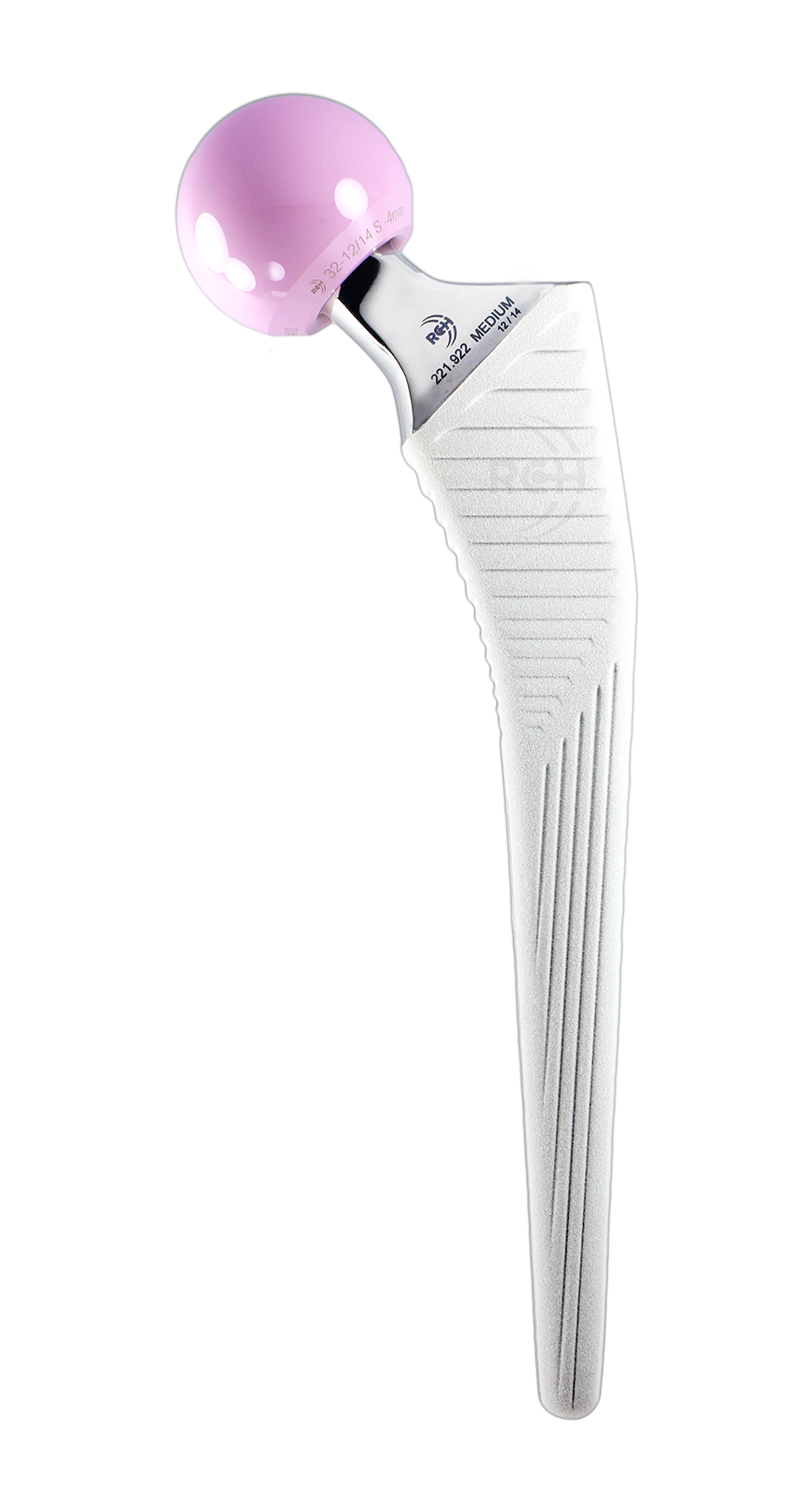

Combinable With :Metal (Co.Cr / S.S) and Ceramic femoral heads
Variant : Standard CCD angle 135° with Standard Offset And High Offset Variants
Sizes : 8, 9, 10, 11, 12, 13, 14, 15 with Standard and High Offset Variants
1. Optimized neck geometry which increases available range of motion with universal 12/14 tapered cone.
2. Apart from the polished neck area, the stem is fully Hydroxyapatite (HA) coated which accelerates growth of the bone onto the implant,thereby promoting stable and long term fixation because of better Osteointregation.
3. Vertical and horizontal grooves provides rotational and axial stability.
4. Low-profile lateral shoulder design enables easy insertion in reduced incision techniques,especially when using the anterior approach.
5. Collarless Design.
| Item Code | ATiX™ bioActiv™ HA UNC STEM (12/14, STD, 135°, NO COLLAR) |
|---|---|
| 1000-01-06 | ATiX™ bioActiv™ HA UNC STEM SIZE - 06 CUSTOM (12/14, STD, 135°, NO COLLAR) |
| 1000-01-08 | ATiX™ bioActiv™ HA UNC STEM SIZE - 08 N (12/14, STD, 135°, NO COLLAR) |
| 1000-01-09 | ATiX™ bioActiv™ HA UNC STEM SIZE - 09 XS (12/14, STD, 135°, NO COLLAR) |
| 1000-01-10 | ATiX™ bioActiv™ HA UNC STEM SIZE - 10 S (12/14, STD, 135°, NO COLLAR) |
| 1000-01-11 | ATiX™ bioActiv™ HA UNC STEM SIZE - 11 S+ (12/14, STD, 135°, NO COLLAR) |
| 1000-01-12 | ATiX™ bioActiv™ HA UNC STEM SIZE - 12 M (12/14, STD, 135°, NO COLLAR) |
| 1000-01-13 | ATiX™ bioActiv™ HA UNC STEM SIZE - 13 M+ (12/14, STD, 135°, NO COLLAR) |
| 1000-01-14 | ATiX™ bioActiv™ HA UNC STEM SIZE - 14 L (12/14, STD, 135°, NO COLLAR) |
| 1000-01-15 | ATiX™ bioActiv™ HA UNC STEM SIZE - 15 XL (12/14, STD, 135°, NO COLLAR) |
| Item Code | ATiX™ bioActiv™ HA UNC STEM, HIGH OFFSET, 125°, NO COLLAR) |
| 1000-03-06 | ATiX™ bioActiv™ HA UNC STEM SIZE - 06 CUSTOM (12/14, HIGH OFFSET, 125°, NO COLLAR) |
| 1000-03-08 | ATiX™ bioActiv™ HA UNC STEM SIZE - 08 N (12/14, HIGH OFFSET, 125°, NO COLLAR) |
| 1000-03-09 | ATiX™ bioActiv™ HA UNC STEM SIZE - 09 XS (12/14, HIGH OFFSET, 125°, NO COLLAR) |
| 1000-03-10 | ATiX™ bioActiv™ HA UNC STEM SIZE - 10 S (12/14, HIGH OFFSET, 125°, NO COLLAR) |
| 1000-03-11 | ATiX™ bioActiv™ HA UNC STEM SIZE - 11 S+ (12/14, HIGH OFFSET, 125°, NO COLLAR) |
| 1000-03-12 | ATiX™ bioActiv™ HA UNC STEM SIZE - 12 M (12/14, HIGH OFFSET, 125°, NO COLLAR) |
| 1000-03-13 | ATiX™ bioActiv™ HA UNC STEM SIZE - 13 M+ (12/14, HIGH OFFSET, 125°, NO COLLAR) |
| 1000-03-14 | ATiX™ bioActiv™ HA UNC STEM SIZE - 14 L (12/14, HIGH OFFSET, 125°, NO COLLAR) |
| 1000-03-15 | ATiX™ bioActiv™ HA UNC STEM SIZE - 15 XL (12/14, HIGH OFFSET, 125°, NO COLLAR) |
